NXC 044÷164

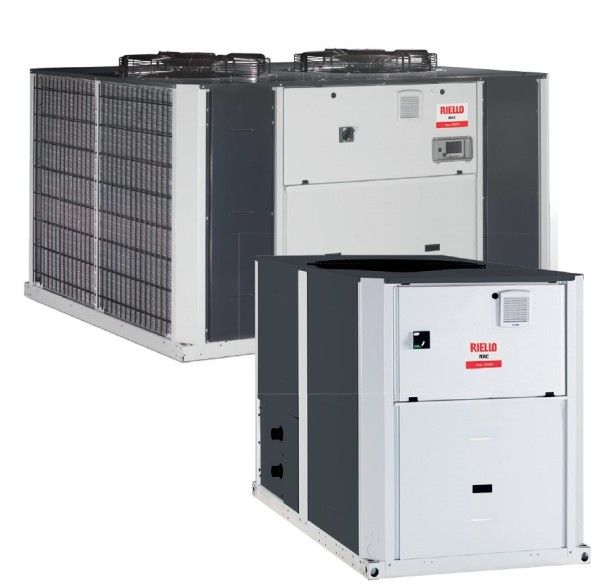

The NXC series units are chillers for air conditioning of commercial users for outdoor installation, available with various options to choose from such as: one pump, two pumps, with or without tank, with or without partial recoverer.

Maximum reliability and efficiency thanks to the high level of partialization: for powers up to 114 kW with two/three singlecircuit Scroll compressors, while for powers of 135 KW and 156 kW with four compressors divided into two circuits. The waterside exchanger is of the brazed plate type.

The units are equipped with axial fans with external rotor with variable speed, to ensure operation with outdoor temperatures up to +46°C. Intuitive interface thanks to the touch screen control with possible M-BUS connection.

– Plug & Play solution with pump(s) on board the machine (optional)

– Low aesthetic impact thanks to the reduced height

– Easy maintenance by removing the service panels

– Touch screen control panel with possible M-BUS connection

– Condensing coil protection grilles not included

Air cooled water chillers with helical fans from 40 kW to 156 kW, with ecological refrigerant R410A
