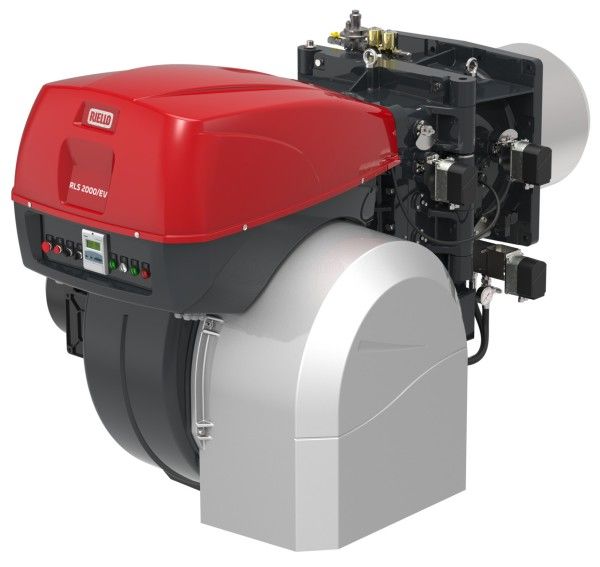

RLS 1300÷2000/EV C11
The RLS/E and RLS/EV C11 dual fuel burners series are characterized by a modular monoblock structure that means all necessary components can be combined in a single unit thus making installation easier, faster and, above all, more flexible.

The burners cover a firing range from 7500 to 19500 kW and they have been designed for use in hot water boilers or industrial steam generators.

Operation can be modulating on the RLS/E series and modulating with variable speed drive operation on RLS/EV series.

The mechanisms of regulation allow to catch up a high modulation ratio on all firing rates range.

The burner can, therefore, supply with precision the demanded power, guaranteeing an high efficiency system level and the stability setting, obtaining fuel consumption and operating costs reduction.

The burner operation can be intermittent or continuous by menu setting.

The innovative combustion head, adjustment system ensures perfect movement during modulation
